Ask about the combination Mash Tun Still configurations.

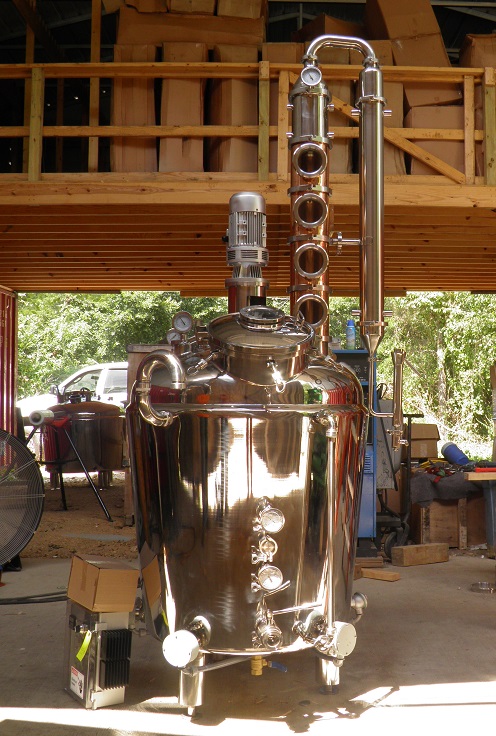

The picture above is of 1 of our Standard Series 105 gallon Jacketed Bain Marie Stills with 6" Column and optional 1hp Agitator.



To See Our Catalog with all of our different products CLICK HERE





105 Gallon Jacketed Standard Series Still with 6 Copper Bubble Plate Column

This 105 gallon still is great for Bourbon, Whiskey, Brandy, Grappa, Rum and many others.  It will distill between 130 and 170 proof.

This Still has a beautiful 6" Diameter Stainless & Copper Bubble Plate Column with four 4" diameter sight glasses, Gatling Gun (Tube & Shell) Dephlagmator on top of the Column and a 4" Gatling Gun (Tube & Shell) Condenser on the side of the column. The column can be ran in Pot Still Mode to make Whiskey and Moonshine or it can be ran in reflux mode to make high proof light Whiskey or Rum.  The boiler has four 2" Tri Clamp ports, with Tri Clamps and Cover Plates. The port can be used to install an electric element with controller (please see the heating system option listed below).

  The Best thing about this 105 gallon still is that it is jacketed.  Cooking oil or water can be ran in the jacket.  This gives you the ability to run grain in mashes and other mashes such as potato mashes, grappa mashes and fruit mashes with the solids left in, without the worry of scorching.  We have options below for agitators etc

105 Gallon Operating Capacity

120 Gallon Total Capacity

19 Gallon Jacket Operating Capacity

26 Gallon Total Capacity in the Jacket

2" Sanitary Butterfly Drain valve for Mash

6" Tri Clamp Column Connection

16 Diameter Manway

5 psi Pressure Relief Valve on the jacket

5 psi Pressure Relief Valves on the inner boiler

6 Diameter Stainless Bubble Plate Column with all copper internal parts

The column is completely modular with Sanitary Tri Clamp Connections throughout

It is very simple easy and fast to disassemble the Column for Cleaning

Plates can be added or removed from the column to run different proofs

The Column can be Set up to Run as a Pot Still Head in a Matter of 5 to 10 Minutes

Top quality construction with beautifully rounded curves.

Built from heavy gauge 304 food grade stainless steel

Commercial grade thermometer in the oil Jacket

1x1.5 triclamp port for a temperature probe in the oil



Polished to a mirror finish inside and out.



Thermowell and Commercial grade thermometer with a 3" face.



This item comes with a 1 year warranty which covers manufacturing defects and leaks

Price with everything listed above = $6,105.14

Please see the options listed below:

Stainless 6 Gin Basket $556.00

1hp electric agitator single speed 45 RPM 3 phase 240VAC $1,655.00

Variable speed WEG VFD drive for 1 hp agitator to be mounted on the wall.  This VFD is Rated NEMA 4x for hazardous environments can be washed down. Price is $695.00  This VFD can be wired 3 phase or single phase input, to supply power to the 3 phase agitator

16,500 watt Electric heating system with digital programmable heating control and all UL listed parts.  Control panel and element enclosures are NEMA4X.  Comes in 230v single phase, 240v 3 phase 480v 3 phase.  Price = $2,622.00

22,000 watt heating system with digital programmable heating control and all UL listed parts. Comes in 230v single phase, 240v 3 phase 480v 3 phase. Control panel and element enclosures are NEMA4X.  Price = $3,449.00

Approx. 90 min heat up time with the 22,000 watt controller

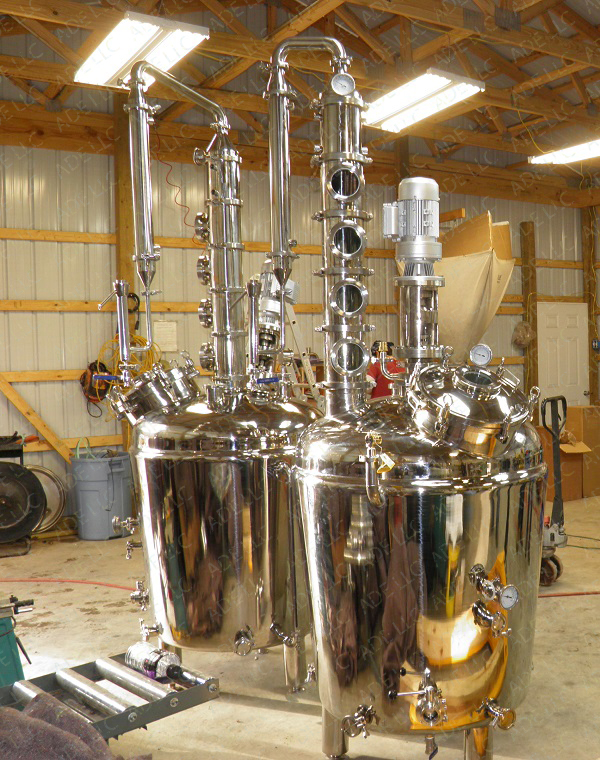

The still in front-right in the picture below is a Standard Series 105 Gallon Still set up as a Combination Mash Tun Still

The still in the rear-left is a 105 gallon Standard Series Still.
