The picture above is one of our Custom Pro Series Stills with a Bain Marie Style Oil Bath Still Boiler.



To See Our Catalog with all of our different products CLICK HERE













We have 50 gallon Pro Series Stills in Several different configurations.

   The picture above is of one of our 50 gallon Jacketed, Baine Marie, Pro Series Pot Stills. Our 50 gallon Stills can be heated by Low Pressure Steam Boiler or by our optional Electric Self Contained oil bath Heating System. Click on the Low Pressure Steam Boiler link to the left to see our Low Pressure Steam Boilers. This 50 gallon Still is 9' 7" tall but it can be scaled down to 7' 10" Tall.  The width of the still including the condenser is 10'. This Still is great for producing Whiskey, Bourbon, Moonshine and Brandy. This 50 gallon Pot Still will produce up to 140 Proof with the Optional Bubble Plate. This 50 gallon Still comes standard with the below:



  • 50 Gallon Operating Capacity 304SS Stainless Steel Boiler

  • 60 Gallon Actual Capacity

  • 1hp 230vac 3 Phase or Single Phase 0 rpm to 45 rpm Variable Speed Agitator

  • 12" Clamp Down Manway

  • 4" Sight Glass in the Manway

  • 5 PSI Pressure Relief Valve on the Inner Boiler

  • 5 PSI Vacuum Relief Valve on the Inner Boiler

  • 15 PSI ASME Pressure Relief Valve on the Jacket

  • 15 PSI Steam Jacket

  • Insulation Jacket

  • 4" Tri Clamp Butterfly Valve on the drain

  • Copper Scotch Style Column

  • 4" Sight Glass in the Column

  • 2 CIP Spray Balls in the Column

  • 2 CIP Spray Balls in the Boiler

  • 4" Face 0F to 250F Thermometer in the Column

  • 3" Face 0F to 250F Thermometer on the inner Boiler

  • 6"x36" Tube and Shell Condenser

  • Stainless Parrot's Beak

  • Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser, You Pick. (We provide a table stand by default)

  • 9'7" Overall Height

  • Site Gauge for Boiler Volume

  • Mirror Polish on Copper and Stainless

  • Inner Boiler has a Mirror Polish

        Regular Price: $12,068.96

SALE PRICE: $11,995.00

Options:

Bubble Plate with Drain Valve behind the Sight Glass in the Column with Dephlegmator: $1,455.00

16,500 Watt , Self Contained, Bain Marie Style, Oil Bath Heating System with Controller $2,595.00. Please see the Still Boiler in the picture to the left

Gin Basket in the Scotch Column: $870.00

Extra Thermowell in the column for a Temperature Probe: $65.00

CIP System with Plumbing and Pump: $2,262.20

Low Profile 7'10" Overall Height: $1,995.00

Gin Basket just before the Primary Condenser: $2,267.80

Payment Terms:

1/3 Payment due when ordering equipment.

1/3 Payment due when equipment is completed.

1/3 Payment plus shipping due when equipment is ready to ship.

To order call 417-778-6100

If you have questions email paul@distillery-equipment.com

The drawing above is of one of our our 50 gallon Pro Series Pot Stills.



    The picture above is of one of our Jacketed, Steam Heated, Pro Series Whiskey Stills. This 50 gallon Still comes standard with our 6" 4 plate Bubble Plate Column. This column will produce up to 160 proof in 1 run.  The Dephlegmator (Pre-Condenser) can be turned off, and the Plate Drain Valves of the Whiskey Column can be opened so that the still can be ran in Pot Still Mode. Any individual Plate Drain Valve, or any combination of the Plate Drain Valves, can be ran closed or open to obtain different proofs and flavor profiles. If you want you can do stripping runs in Pot Still Mode, and then do Spirit Runs with the Plate Drain Valves closed. This 50 Gallon Whiskey Still can be heated by a Low Pressure Steam Boiler, or by a Bain Marie style self contained jacketed heating system (please see the options below). Click on the Low Pressure Steam Boiler link above to see our Low Pressure Steam Boilers. This 50 gallon Still is 9' 7" tall, but it can be scaled down to 9' 4" Tall. The width of the 50 gallon WhiskeyS till including the condenser is 11'. This 50 gallon Still is great for producing Whiskey, Bourbon, Moonshine and Brandy. The 4 Plate Copper Whiskey Column will give you higher proofs and smoother spirits than the Pro Series Pot Still.  This 50 gallon Still comes Standard with:



  • 50 Gallon Operating Capacity 304SS Stainless Steel Boiler

  • 60 Gallon Actual Capacity

  • 1hp 230vac 3 phase 0 rpm to 45 rpm Variable Speed Agitator:

  • 12" Clamp Down Manway

  • 4" Sight Glass in the Manway

  • 5 PSI Pressure Relief Valve on the Inner Boiler

  • 5 PSI Vacuum Relief Valve on the Inner Boiler

  • 15 PSI ASME Pressure Relief Valve On the Jacket

  • 15 PSI Steam Jacket

  • Insulation Jacket

  • 2" Tri Clamp Butterfly Valve on the drain

  • 6" Diameter Whiskey Column with 4 Bubble Plates

  • 6" Diameter Tube & Shell Dephlegmator

  • (4) 4" Sight Glasses in the Column

  • 4 CIP Spray Balls in the Column (1 above each plate)

  • 4 Plate Drain Valves

  • 3" Face Thermometer above the Dephlegmator in the Whiskey Column

  • 3" Face Thermometer below the Dephlegmator in the Whiskey Column

  • 2 CIP Spray Balls in the Boiler

  • 4" Face 0F to 250F Thermometer in the Column

  • 3" Face 0F to 250F Thermometer on the inner Boiler

  • 4"x36" Tube and Shell Condenser

  • Stainless Parrot's Beak

  • Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser, You Pick. (We provide a table stand by default)

  • 9'10" Overall Height

  • Mirror Polish on Copper and Stainless

  • Inner Boiler Has a Mirror Polish

        Regular Price: $15,167.25

               SALE PRICE: $14,995.00

Options:

16,500 Watt , Self Contained, Bain Marie Style, Oil Bath Heating System With Controller $2,595.00

Extra Thermowell in The Column for a Temperature Probe: $65.00

CIP System With Plumbing and Pump: $2,662.20

Low Profile 9'4" Overall Height: $1,966.20

Gin Basket just before the Primary Condenser: $2,267.80

Payment Terms:

1/3 Payment due when ordering equipment.

1/3 Payment due when equipment is completed.

1/3 Payment plus shipping due when equipment is ready to ship.

To order call 417-778-6100

If you have questions email paul@distillery-equipment.com

The drawing below is of  our 200 Gallon Pro Series, 4 Plate Whiskey Still

  The drawing above is of one of our 50 gallon Jacketed, Steam Heated, Pro Series, Ultra Pro Whiskey Stills. This 50 gallon Still comes with 2 Copper Columns. The Copper Scotch Column sits on the 50 gallon Still while the 6", 4 plate Bubble Plate Column is offset with it's own stand. The individual Plate Drain Valves in the 4 Plate Whiskey Column can be opened or closed, allowing for better control of flavor profiles and proof.  The Dephlegmator at the top of the Whiskey Column is used to control proof. With the optional Bubble Plate in the Scotch Column this Still will produce up to 160 proof in 1 run. If you are doing a stripping run, or if you are doing a full flavored Brandy, there is a bypass valve that allows you to bypass the 4 Plate Whiskey Column so that you are only running alcohol through the Scotch Column. This 50 Gallon Whiskey Still can be heated by a Low Pressure Steam Boiler, or by a Bain Marie style self contained jacketed, heating system (please see the options below). Click on the Low Pressure Steam Boiler link above to see our Low Pressure Steam Boilers. This 50 gallon Still is 9' 10" tall but it can be scaled down to 9' 4" tall. The width of the 50 gallon Still including the condenser is 14'. This 50 gallon Still is great for producing Whiskey, Bourbon, Moonshine, Brandy, Rum and Gin (with the optional Gin Basket). This 50 gallon Ultra Pro Whiskey Still comes standard with:



  • 50 Gallon Operating Capacity 304SS Stainless Steel Boiler

  • 60 Gallon Actual Capacity

  • 1hp 230vac 3 phase 0 rpm to 150 rpm Variable Speed Agitator:

  • 12" Clamp Down Manway

  • 4" Sight Glass in the Manway

  • 5 PSI Pressure Relief Valve on the Inner Boiler

  • 5 PSI Vacuum Relief Valve on the Inner Boiler

  • 15 PSI ASME Pressure Relief Valve On the Jacket

  • 15 PSI Steam Jacket

  • Insulation Jacket

  • 2" Tri Clamp Butterfly Valve on the drain

  • Copper Scotch Style Column on the Still

  • 4" Sight Glass in The Sphere of the Copper Scotch Style Column

  • 6" Diameter Offset, Whiskey Column with 4 Bubble Plates

  • 6" Diameter Tube & Shell Dephlegmator on the 4 Plate Offset Column

  • (4) 4" Sight Glasses in the Whiskey Column

  • 4 CIP Spray Balls in the Whiskey Column (1 above each plate)

  • 4 Plate Drain Valves

  • Drain Return from the 4 Plate Whiskey Column to the Still Boiler

  • Check Valve in the Drain Return Line

  • 4" Face Thermometer above the Dephlegmator in the Whiskey Column

  • 4" Face Thermometer below the Dephlegmator in the Whiskey Column

  • 2 CIP Spray Balls in the Boiler

  • 4" Face 0F to 250F Thermometer in the Scotch Column

  • 3" Face 0F to 250F Thermometer on the inner Boiler

  • 8"x36" Tube and Shell Condenser

  • Stainless Parrot's Beak

  • Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser and Offset Columns, You Pick.

  • 9'10" Overall Height

  • Mirror Polish on Copper and Stainless

  • Inner Boiler Has a Mirror Polish

        Regular Price: $19,313.96

               SALE PRICE: $15,995.00

Options:

Bubble Plate with Drain Valve behind the Sight Glass in the Column with Dephlegmator: $1,455.0

16,500 Watt , Self Contained, Bain Marie Style, Oil Bath Heating System With Controller $2,595.00

Extra Thermowells in The Columns for a Temperature Probe: $120.00

Extra Thermowells Above the Dephlegmator for a Temperature Probe: $120.00

CIP System with Plumbing and Pump: $3,427.80

Low Profile 9'4" Overall Height: $1,966.20

Gin Basket in the Scotch Column: $870.00

Gin Basket just before the Primary Condenser: $2,267.80

Payment Terms:

1/3 Payment due when ordering equipment.

1/3 Payment due when equipment is completed.

1/3 Payment plus shipping due when equipment is ready to ship.

To order call 417-778-6100

If you have questions email paul@distillery-equipment.com

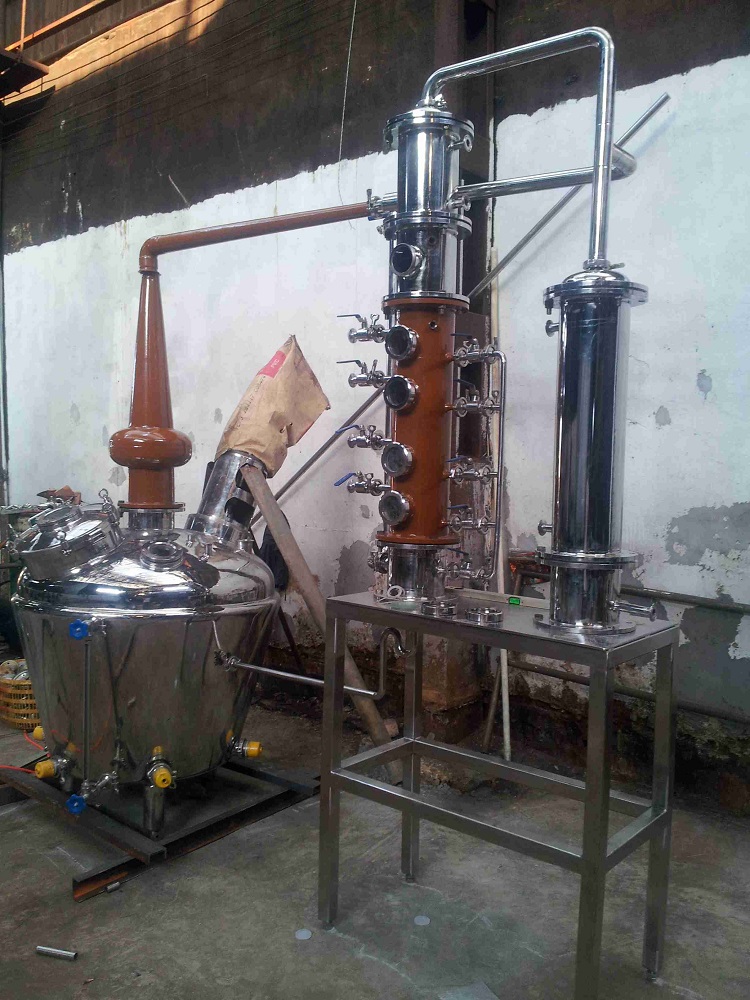

The Ultra Pro Whiskey still below has the optional Gin Basket.

The Ultra Pro Whiskey Still below is a Bain Marie style still with its own built in oil bath heating system.
