   These Mash Tuns work great for making Single Malt Whiskies and any other Whiskeys with a grain bill similar to beer.  These mash tuns work great with our HLTs.  These do not work well for grain bills that are mostly Corn or Rye.

Standard:

  • 304 stainless steel construction.

  • 61" tall without the lid

  •  1-1/2" Drain Valve

  • False Bottom

  • Sparging Arm

  • 13.8" Manway for cleaning out the spent grain above the false bottom.

  • Clamp Down Lid with a port for a CIP Spray Ball

  • Tri Clamp fittings

Price: $10,187.34

1/3 Payment due when ordering equipment.

1/3 Payment due when equipment is completed.

1/3 Payment due plus shipping when equipment is ready to ship.

To See Our Catalog with all of our different products CLICK HERE

150 gal. Pro Series Mash Tun

200 gal. Pro Series Mash Tun

300 gal. Pro Series Mash Tun

500 gal. Pro Series Mash Tun

600 gal. Pro Series Mash Tun

Options:

Sparge Arm with Sparge Ball, includes gaskets and 1.5" Tri Clamps for attaching to the Mash Tun $112.50.



CIP Spray Ball.  This Spray Ball fits the 3" CIP port on the lid of the Mash Tun. $43.88

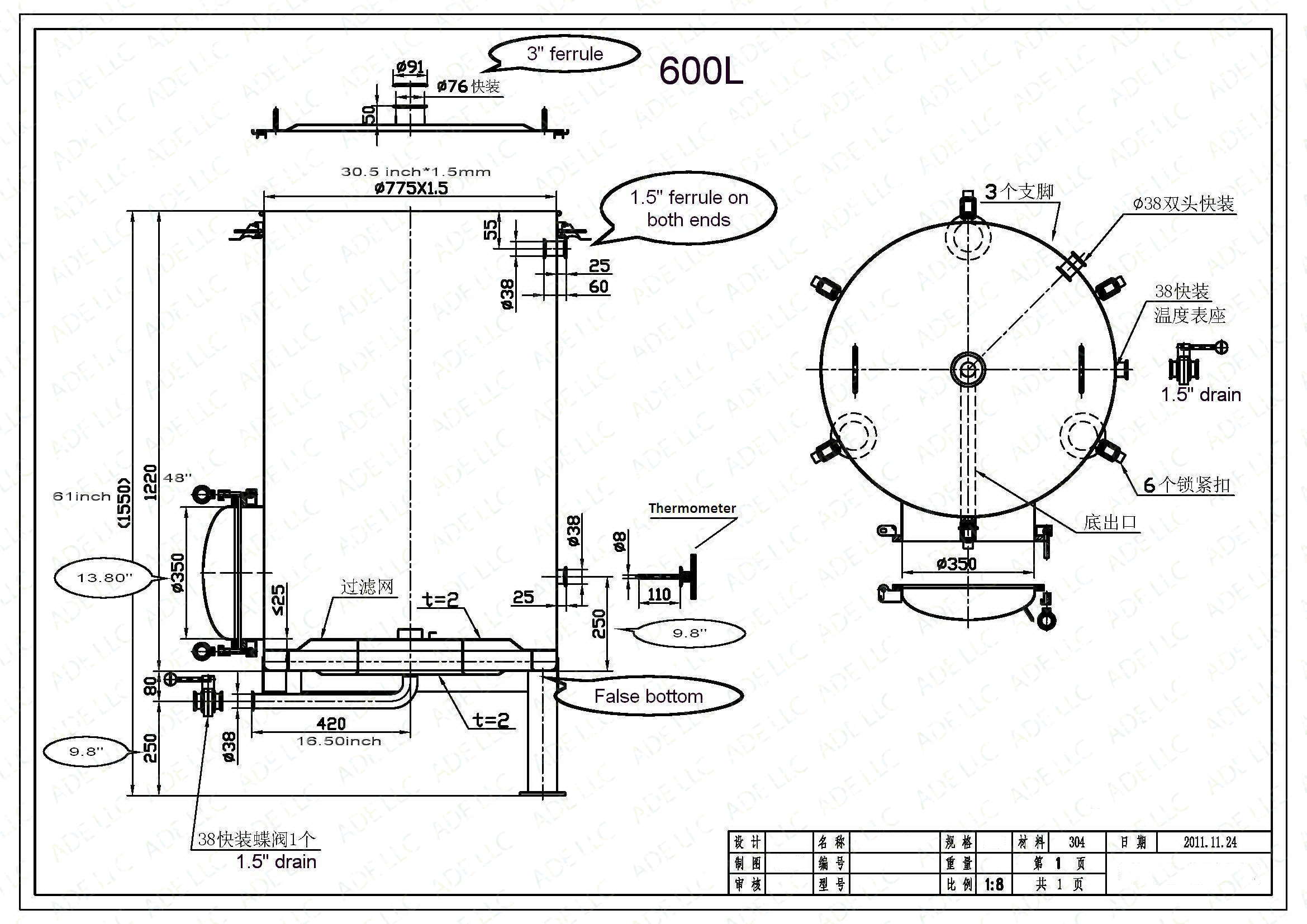

If you would like to see a much larger copy of the drawing, just click on it. You will have to click your back button to return to this page.

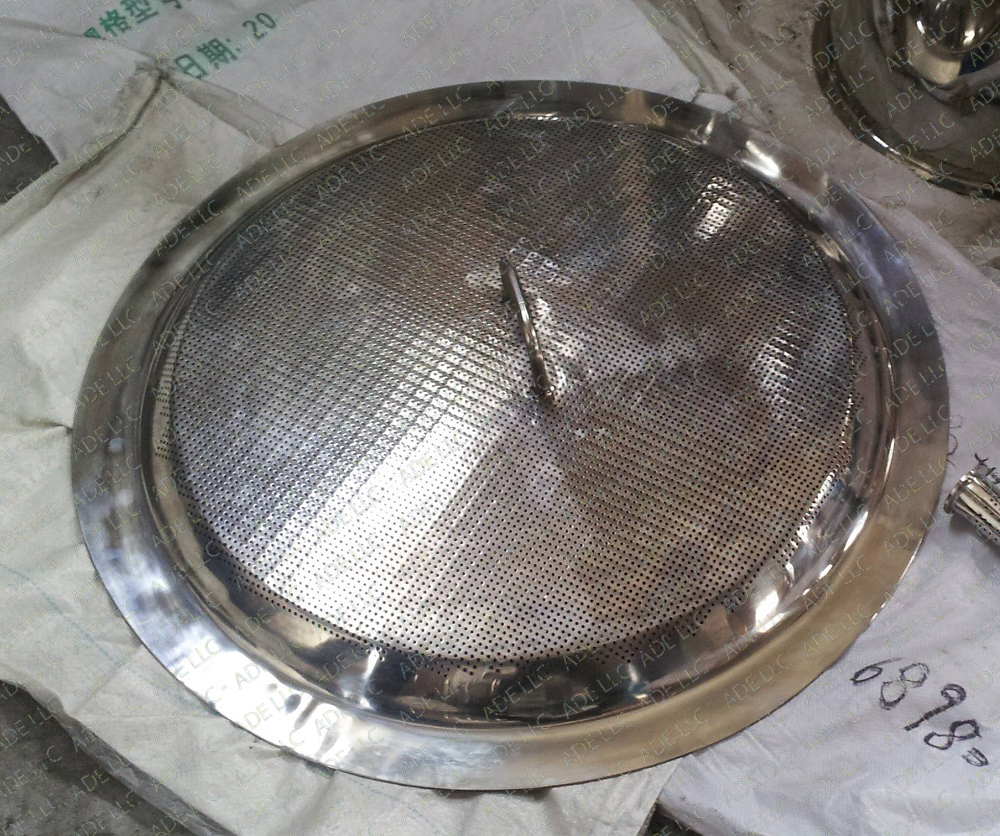

Above is a picture of the false bottom which comes with these Mash Tuns.

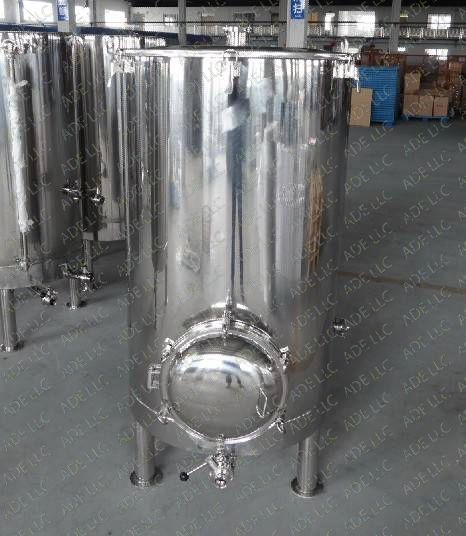

Please note the large Manway for cleaning out above the false bottom.
