The picture above is one of our Custom Pro Series Stills with a Bain Marie Style Oil Bath Still Boiler.

To See Our Catalog with all of our different products CLICK HERE



New Signature Series Stills

Any of the still configurations that we have listed below can be upgraded to our Signature Series. Our Signature Series Stills are incredibly beautiful, very high quality stills with a bit of an old world flair.  If you want to really wow your customers during tours and tasting, the Signature series has the extra bling and style that you may be looking for without the huge price tag of comparable German made stills.  Please see the pics of one of our Signature Series Stills below.





We have 100 gallon Pro Series Stills in Several different configurations.

The Picture above is of one of our 100 gallon Jacketed, Baine Marie Pro Series Pot Stills. These 100 gallon Stills can be heated by Low Pressure Steam Boiler, or by our optional Electric Self Contained Bain Marie style oil bath Heating System. Click on the Low Pressure Steam Boiler link to the left to see our Low Pressure Steam Boilers. This 100 gallon Still is 9' 10" tall but it can be scaled down to 7' 10" Tall.  The width of the still including the condenser is 11'. This Still is great for producing Whiskey, Bourbon, Moonshine and Brandy. This 100 gallon Pot Still  will produce up to 140 Proof with the Optional Bubble Plate. This Still comes Standard with:



  • 100 Gallon Operating Capacity 304SS Stainless Steel Boiler

  • 120 Gallon Actual Capacity

  • 1hp 230vac 3 phase 0 rpm to 45 rpm Variable Speed Agitator

  • 12" Clamp Down Man Way

  • 4" Sight Glass in the Manway

  • 5 PSI Pressure Relief Valve on the Inner Boiler

  • 5 PSI Vacuum Relief Valve on the Inner Boiler

  • 15 PSI ASME Pressure Relief Valve On the Jacket

  • 15 PSI Steam Jacket

  • Insulation Jacket

  • 4" Tri Clamp Butterfly Valve on the drain

  • Copper Scotch Style Column

  • 4" Sight Glass in the Column

  • 2 CIP Spray Balls in the Column

  • 2 CIP Spray Balls in the Boiler

  • 4" Face 0°F to 250°F Thermometer in the Column

  • 3" Face 0°F to 250°F Thermometer on the inner Boiler

  • 8"x36" Tube and Shell Condenser

  • Stainless Parrot's Beak

  • Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser, You Pick. (We provide a table stand by default)

  • 9'10" Overall Height

  • Mirror Polish on Copper and Stainless

  • Inner Boiler Has a Mirror Polish

        Regular Price: $18,042.59



1/3 Payment due when ordering equipment.

1/3 Payment due when equipment is completed.

1/3 Payment plus shipping due when equipment is ready to ship.

Options:

Bubble Plate with Drain Valve behind the Sight Glass in the Column: $1,875.81

Bain Marie Style 22,000 Watt Electric Oil Bath Heating System With Controller $7,941.10

Upgrade to an 16" Manway: $509.25

Gin Basket in the Globe of the Column with a 6" Tri Clamp Opening: $1,121.62

Extra Thermowell in the column for a Temperature Probe: $83.80

CIP System with Plumbing and Pump: $3,432.16

Low Profile 7'10" Overall Height: $2,086.21

Gin Basket just before the Primary Condenser: $3,568.29

Payment Terms:

1/3 Payment due when ordering equipment.

1/3 Payment due when equipment is completed.

1/3 Payment plus shipping due when equipment is ready to ship.

To order call 417-778-6100

If you have questions email paul@distillery-equipment.com

The Drawing above is of one of our 100 gallon Pro Series Pot Stills

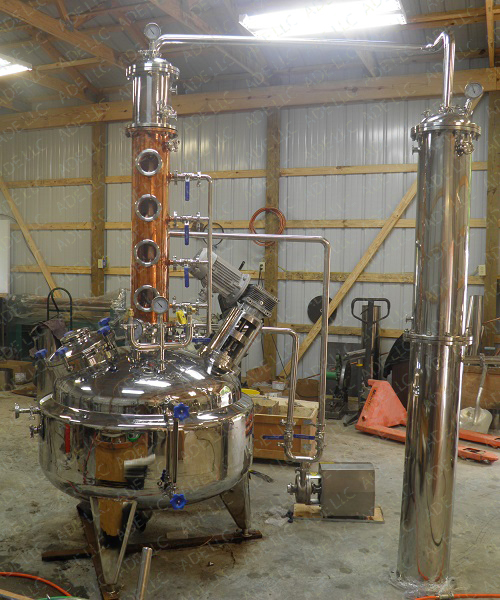

  The picture below is of 1 of our Pro Series Whiskey Stills. If you would like to visit the Distillery to see this still in operation and hear what the owner has to say about this still, just email us paul@distillery-equipment.com and we will send you the contact information.

The picture above is of one of our 100 gallon Jacketed, Steam Heated, Pro Series Whiskey Stills. This Still comes standard with our 8" 4 plate Bubble Plate Column . This column will produce up to 160 proof in 1 run. The Dephlegmator (Pre-Condenser) can be turned off, and the Plate Drain Valves of the Whiskey Column can be opened so that the still can be ran in Pot Still Mode. Any individual Plate drain Valve, or any combination of Plate Drain Valves, can be ran closed or open to obtain different proofs and flavor profiles.  If you want, you can do stripping runs in Pot Still Mode and then do Spirit Runs with the Plate Drain Valves closed. This 100 Gallon Whiskey Still can be heated by a Low Pressure Steam Boiler, or by a Bain Marie style self contained jacketed heating system (please see the options below). This 100 gallon Still is 9' 10" tall but it can be scaled down to 7' 10" Tall.  The width of the Still including the condenser is 12'. This Still is great for producing: Whiskey, Bourbon, Moonshine and Brandy. The 4 Plate Copper Whiskey Column will give you higher proofs and smoother spirits than the Pro Series Pot Still. This 100 gallon Still comes Standard with:



  • 100 Gallon Operating Capacity 304SS Stainless Steel Boiler

  • 120 Gallon Actual Capacity

  • 1hp 230vac 3 phase 0 rpm to 45 rpm Variable Speed Agitator:

  • 12" Clamp Down Manway

  • 4" Sight Glass in the Manway

  • 5 PSI Pressure Relief Valve on the Inner Boiler

  • 5 PSI Vacuum Relief Valve on the Inner Boiler

  • 15 PSI ASME Pressure Relief Valve On the Jacket

  • 15 PSI Steam Jacket

  • Insulation Jacket

  • 4" Tri Clamp Butterfly Valve on the drain

  • 8" Diameter Whiskey Column with 4 Bubble Plates

  • 8" Diameter Tube & Shell Dephlegmator

  • (4) 4" Sight Glasses in the Column

  • 4 CIP Spray Balls in the Column (1 above each plate)

  • 4 Plate Drain Valves

  • 4" Face Thermometer above the Dephlegmator in the Whiskey Column

  • 4" Face Thermometer below the Dephlegmator in the Whiskey Column

  • 2 CIP Spray Balls in the Boiler

  • 4" Face 0°F to 250°F Thermometer in the Column

  • 3" Face 0°F to 250°F Thermometer on the inner Boiler

  • 8"x36" Tube and Shell Condenser

  • Stainless Parrot's Beak

  • Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser, You Pick. (We provide a table stand by default)

  • 9'10" Overall Height

  • Mirror Polish on Copper and Stainless

  • Inner Boiler has a Mirror Polish

        Regular Price: $20,621.02



1/3 Payment due when equipment is ordered.

1/3 Payment due when equipment is completed.

1/3 Payment plus shipping due when equipment is ready to ship.

Options:

Bain Marie Style 22,000 Watt Electric Oil Bath Heating System with Controller $7,941.10

Upgrade to an 16" Manway: $509.25

Extra Thermowell in the Column for a Temperature Probe: $83.80

CIP System with Plumbing and Pump: $3,432.16

Low Profile 7'10" Overall Height: $2,235.77

Gin Basket just before the Primary Condenser: $3,568.29

To order additional options, please call 417-778-6100

If you have questions email paul@distillery-equipment.com

The drawing below is of  our 100 Gallon Pro Series, 4 Plate Whiskey Still

The drawing above is of one of our 100 gallon Jacketed, Steam Heated, Pro Series, Ultra Pro Whiskey Stills. This Still comes with 2 Copper Columns. The Copper Scotch Column sits on the Still, while the 8" 4 plate Bubble Plate Column is offset with it's own stand.  The individual Plate Drain Valves in the 4 Plate Whiskey Column can be opened or closed, allowing for better control of flavor profiles and proof.  The Dephlegmator at the top of the Whiskey Column is used to Control Proof. With the optional Bubble Plate in the Scotch Column this still will produce up to 160 proof in 1 run. If you are doing a stripping run, or if you are doing a full flavored Brandy, there is a bypass valve that allows you to bypass the 4 Plate Whiskey Column so that you are only running alcohol through the Scotch Column. This 100 Gallon Whiskey Still can be heated by a Low Pressure Steam Boiler, or by a Bain Marie style, self contained jacketed, heating system (please see the options below). Click on the Low Pressure Steam Boiler link to the left to see our Low Pressure Steam Boilers. This 100 gallon Still is 9' 10" tall, but it can be scaled down to 9' 4" Tall.  The width of the Still including the condenser is 16'. This Still is great for producing Whiskey, Bourbon, Moonshine, Brandy, Rum and Gin (with the optional Gin Basket). This 100 gallon Pro Series Ultra Pro Whiskey Still comes Standard with:



  • 100 Gallon Operating Capacity 304SS Stainless Steel Boiler

  • 120 Gallon Actual Capacity

  • 1hp 230vac 3 phase 0 rpm to 45 rpm Variable Speed Agitator

  • 12" Clamp Down Manway

  • 4" Sight Glass in the Manway

  • 5 PSI Pressure Relief Valve on the Inner Boiler

  • 5 PSI Vacuum Relief Valve on the Inner Boiler

  • 15 PSI ASME Pressure Relief Valve On the Jacket

  • 15 PSI Steam Jacket

  • Insulation Jacket

  • 4" Tri Clamp Butterfly Valve on the Drain

  • Copper Scotch Style Column on the Still

  • 4" Sight Glass in The Sphere of the Copper Scotch Style Column

  • 8" Diameter Offset, Whiskey Column with 4 Bubble Plates

  • 8" Diameter Tube & Shell Dephlegmator on the 4 Plate Offset Column

  • (4) 4" Sight Glasses in the Whiskey Column

  • 4 CIP Spray Balls in the Whiskey Column (1 above each plate)

  • 4 Plate Drain Valves

  • Drain Return from the 4 Plate Whiskey Column to the Still Boiler

  • Check Valve in the Drain Return Line

  • 4" Face Thermometer above the Dephlegmator in the Whiskey Column

  • 4" Face Thermometer below the Dephlegmator in the Whiskey Column

  • 2 CIP Spray Balls in the Boiler

  • 4" Face 0°F to 250°F Thermometer in the Scotch Column

  • 3" Face 0°F to 250°F Thermometer on the inner Boiler

  • 8"x36" Tube and Shell Condenser

  • Stainless Parrot's Beak

  • Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser and Offset Columns, You Pick.

  • 9'10" Overall Height

  • Mirror Polish on Copper and Stainless

  • Inner Boiler Has a Mirror Polish

        Regular Price: $22,168.08



Options:

Bubble Plate with Drain Valve behind the Sight Glass in the Column: $1,875.81

Bain Marie 22,000 Watt Electric Oil Bath Heating System With Controller $7,941.10

Upgrade to an 16" Manway: $509.25

Extra Thermowells in The Columns for a Temperature Probe: $83.80

Extra Thermowells Above the Dephlegmator for a Temperature Probe: $83.80

CIP System With Plumbing and Pump: $3,551.80

Low Profile 7'10" Overall Height: $2,534.87

Gin Basket in the Scotch Column: $1,121.62

Gin Basket Just Before the Primary Condenser: $3,568.29

Payment Terms:

1/3 Payment due when ordering equipment.

1/3 Payment due when equipment is completed.

1/3 Payment plus shipping due when equipment is ready to ship.

To order call 417-778-6100

If you have questions email paul@distillery-equipment.com

The 100 gallon Ultra Pro Whiskey still below has the optional Gin Basket.

The 100 gallon Ultra Pro Whiskey Still below is a Bain Marie style still with its own built in oil bath heating system.





The drawing above is of our 100 gallon Jacketed, Steam Heated, Pro Series Vodka Stills. This still will produce great Whiskey, Vodka and everything in between. This Still comes with 1 Copper Column and 1 Stainless Column. The individual Plate Drain Valves in the 4 Plate Copper Whiskey Column can be opened or closed allowing for better control of flavor profiles and proof. The Dephlegmator at the top of the Whiskey Column is used to Control Proof.  The 8" Diameter Stainless Steel Vodka Column has 12 bubble plates and a Dephlegmator in the top.  This Still will produce 190 proof Vodka in 2 Runs. The 4 plate Whiskey Column will produce up to 160 proof in 1 run.  For the Vodka run, you must distill the product from the first run through both columns. This 100 Gallon Whiskey Still can be heated by a Low Pressure Steam Boiler, or by a Bain Marie style, self contained, jacketed, heating system (please see the options below). Click on the Low Pressure Steam Boiler link to the left to see our Low Pressure Steam Boilers. This 100 gallon Still is 14' 7" tall. The width of the Still including the condenser is 15' 4". This Still is great for producing: Whiskey, Bourbon, Moonshine, Brandy, Rum and Gin (with the optional Gin Basket) and Vodka. This 100 gallon Pro Series Vodka Still comes Standard with:



  • 100 Gallon Operating Capacity 304SS Stainless Steel Boiler

  • 120 Gallon Actual Capacity

  • 2hp 230vac 3 phase 0 rpm to 45 rpm Variable Speed Agitator:

  • 12" Clamp Down Manway

  • 4" Sight Glass in the Manway

  • 5 PSI Pressure Relief Valve on the Inner Boiler

  • 5 PSI Vacuum Relief Valve on the Inner Boiler

  • 15 PSI ASME Pressure Relief Valve On the Jacket

  • 15 PSI Steam Jacket

  • Insulation Jacket

  • 4" Tri Clamp Butterfly Valve on the Drain

  • 8" Diameter Whiskey Column with 4 Bubble Plates on the Still

  • 8" Diameter Tube & Shell Dephlegmator on the 4 Plate Whiskey Column

  • (4) 4" Sight Glasses in the Whiskey Column

  • 4 CIP Spray Balls in the Whiskey Column (1 above each plate)

  • 4 Plate Drain Valves

  • Check Valve in the Drain Return Line

  • 8" Diameter Offset, Stainless Vodka Column with 12 Bubble Plates

  • 8" Diameter Tube & Shell Dephlegmator on the 12 Plate Offset Vodka Column

  • (12) 4" Sight Glasses in the Stainless Vodka Column

  • 12 CIP Spray Balls in the Vodka Column (1 above each plate)

  • 12 Plate Drain Valves

  • Drain Return from the 12 Plate Vodka Column to the Still Boiler

  • Check Valve in the Drain Return Line

  • 2 CIP Spray Balls in the Boiler

  • 4" Face Thermometer above the Dephlegmator in the Whiskey Column

  • 4" Face Thermometer below the Dephlegmator in the Whiskey Column

  • 4" Face Thermometer above the Dephlegmator in the Vodka Column

  • 4" Face Thermometer below the Dephlegmator in the Vodka Column

  • 3" Face 0°F to 250°F Thermometer on the inner Boiler

  • 8"x42" Tube and Shell Condenser

  • Stainless Parrot's Beak

  • Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser and Offset Columns, You Pick.

  • 14'7" Overall Height

  • Mirror Polish on Copper and Stainless

  • Inner Boiler Has a Mirror Polish

        Regular Price: $33,012.58

Options:

Bain Marie 22,000 Watt  Electric Oil Bath Heating System With Controller $7,941.10

Upgrade to an 16" Manway: $509.25

Extra Thermowell in The Columns for a Temperature Probes: $83.80

Extra Thermowell Above the Dephlegmators for a Temperature Probe: $83.80

CIP System With Plumbing and Pump: $4,479.00

Gin Basket Just Before The Primary Condenser: $3,568.29

Payment Terms:

1/3 Payment due when ordering equipment.

1/3 Payment due when equipment is completed.

1/3 Payment plus shipping due when equipment is ready to ship.

To order call 417-778-6100

If you have questions email paul@distillery-equipment.com

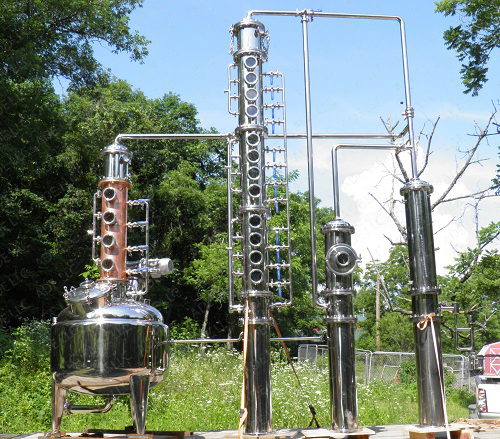

The picture below is of one of our 100 gallon Pro Series Vodka Stills with the optional Gin Basket.





The drawing above is of  our 100 gallon Jacketed, Steam Heated, Pro Series Ultra Pro Vodka Still. This still will do everything that the Pro Series Vodka Still will do and more.  It will produce great Whiskey, Brandy, Rum, Gin, Vodka and everything in between. This Still comes with 1 Copper Scotch Column on the Boiler, 1 Copper 4 Bubble Plate Whiskey Column and 1 Stainless 16 Bubble Plate Vodka Column.  The individual Plate Drain Valves in the 4 Plate Copper Whiskey  and the 16 Plate Vodka Column can be opened or closed allowing for better control of flavor profiles and proof.  The Dephlegmators at the top of the Whiskey Column and Vodka Column are used to control proof. The 10" Diameter Stainless Steel Vodka Column has 16 bubble plates and a Dephlegmator in the top. With the Vodka Column on line this still will produce 190 proof Vodka in 1 run.  For best results a stripping run should be done using only the Scotch Column. Then the Vodka Run should be done with the low wines from the stripping run. The 4 plate Whiskey Column will produce up to 160 proof in 1 run.  If you want to do a stripping run, you bypass the Whiskey Column and the Vodka Column with the 2 bypass valves, or if you are doing a Vodka, you you simply run the vapor through all 3 columns. This 100 Gallon Whiskey Still can be heated by a Low Pressure Steam Boiler or by a Bain Marie style, self contained jacketed, heating system (please see the options below). Click on the Low Pressure Steam Boiler link to the left to see our Low Pressure Steam Boilers. This 100 gallon Still is 17' 7" tall. The width of the Still including the condenser is 17' 4". This Still is great for producing Whiskey, Bourbon, Moonshine, Brandy, Rum, Gin (with the optional Gin Basket) and Vodka. This 100 gallon Pro Series Ultra Pro Vodka Still comes Standard with:

  • 100 Gallon Operating Capacity 304SS Stainless Steel Boiler

  • 120 Gallon Actual Capacity

  • 2hp 230vac 3 phase 0 rpm to 45 rpm Variable Speed Agitator

  • 12" Clamp Down Manway

  • 4" Sight Glass in the Manway

  • 5 PSI Pressure Relief Valve on the Inner Boiler

  • 5 PSI Vacuum Relief Valve on the Inner Boiler

  • 15 PSI ASME Pressure Relief Valve On the Jacket

  • 15 PSI Steam Jacket

  • Insulation Jacket

  • 4" Tri Clamp Butterfly Valve on the Drain

  • Copper Scotch Style Column on the Still

  • 8" Diameter Whiskey Column with 4 Bubble Plates

  • 8" Diameter Tube & Shell Dephlegmator on the 4 Plate Offset Whiskey Column

  • (4) 4" Sight Glasses in the Whiskey Column

  • 4 CIP Spray Balls in the Whiskey Column (1 above each plate)

  • 4 Plate Drain Valves

  • Check Valve in the Drain Return Line

  • 8" Diameter Offset, Stainless Vodka Column with 16 Bubble Plates

  • 8" Diameter Tube & Shell Dephlegmator on the 16 Plate Offset Vodka Column

  • (16) 4" Sight Glasses in the Stainless Vodka Column

  • 16 CIP Spray Balls in the Vodka Column (1 above each plate)

  • 16 Plate Drain Valves

  • Drain Return from the 16 Plate Vodka Column to the Still Boiler

  • 2 CIP Spray Balls in the Boiler

  • 3" face Thermometer on the Scotch Column

  • 4" Face Thermometer above the Dephlegmator in the Whiskey Column

  • 4" Face Thermometer below the Dephlegmator in the Whiskey Column

  • 4" Face Thermometer above the Dephlegmator in the Vodka Column

  • 4" Face Thermometer below the Dephlegmator in the Vodka Column

  • 3" Face 0°F to 250°F Thermometer on the inner Boiler

  • 8"x48" Tube and Shell Condenser

  • Stainless Parrot's Beak

  • Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser and Offset Columns, You Pick.

  • 17'7" Overall Height

  • Mirror Polish on Copper and Stainless

  • Inner Boiler Has a Mirror Polish

        Regular Price: $34,479.59



Options:

Bubble Plate with Drain Valve behind the Sight Glass in the Scotch Column: $1,875.81

Bain Marie 22,000 Watt Single Phase Electric Oil Bath Heating System With Controller $7,941.10

Upgrade to an 16" Manway: $509.25

Extra Thermowell in The Columns for a Temperature Probes: $83.80

Extra Thermowell Above the Dephlegmators for a Temperature Probe: $83.80

CIP System With Plumbing and Pump: $4,556.21

Gin Basket Just Before The Primary Condenser:  $3,568.29

Payment Terms:

1/3 Payment due when ordering equipment.

1/3 Payment due when equipment is completed.

1/3 Payment plus shipping due when equipment is ready to ship.



To order call 417-778-6100

If you have questions email paul@distillery-equipment.com

The still below is one of our Ultra Pro Vodka Stills with the Optional CIP system.

The Ultra Pro Vodka Still below also has the optional CIP system

The Ultra Pro Vodka Still below has the vodka column split into 2 and it also has the optional gin basket & CIP system



The Still below is 1 of our 1st Generation Ultra Pro Series Vodka Stills. If you would like to see this still in operation and  visit with the owner at his distillery, email us at paul@distillery-equipment.com

The Still Above is 1 of our 1st Generation Pro Series Ultra Pro Vodka Stills with CIP.

Testing Stills

Complete Testing Still
